PRODUCT DESCRIPTION

Art.No	WLL(KG)	WIDTH (MM)	COLOR	WLL in kg at different modes
Art.No	WLL(KG)	WIDTH (MM)	COLOR	Stralght lift	Basket lift		Choker hitch
TE8501	1000	25	Violet	1000	2000	1400	800	1000
TE8502	2000	50	Green	2000	4000	2800	1600	2000
TE8503	3000	75	Yellow	3000	6000	4200	2400	3000
TE8504	4000	100	Grey	4000	8000	5600	3200	4000
TE8505	5000	125	Red	5000	10000	7000	4000	5000
TE8506	6000	150	Brown	6000	12000	8400	4800	6000
TE8508	8000	200	Blue	8000	16000	11200	6400	8000
TE8510	10000	250	Orange	10000	20000	14000	8000	10000
TE8512	12000	300	Orange	12000	24000	16800	9600	12000

Webbing slings

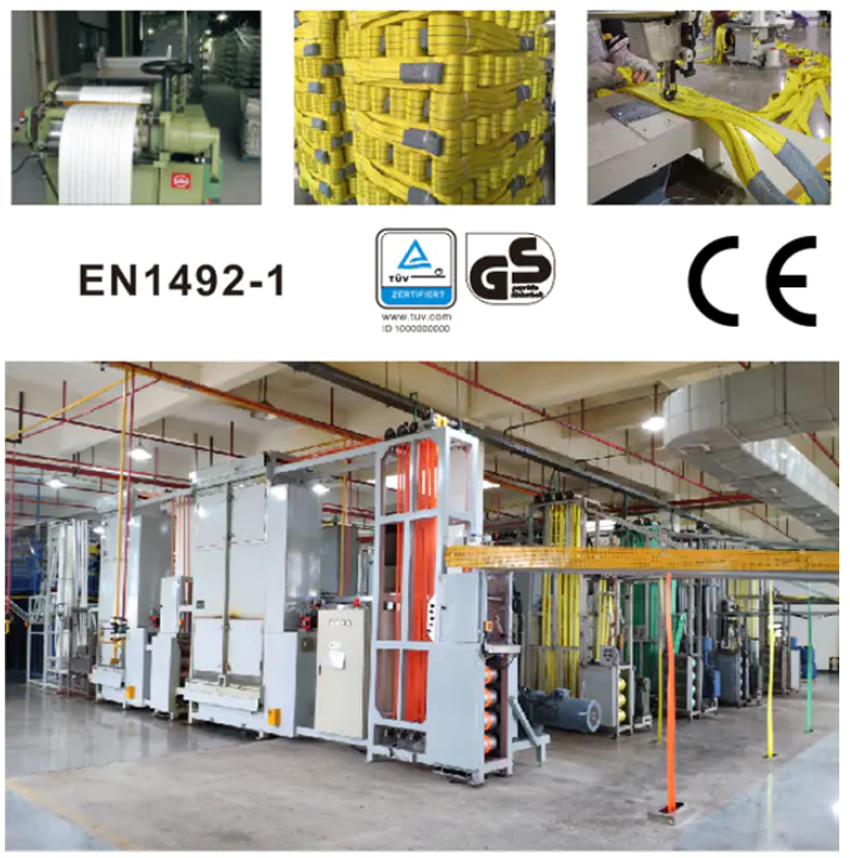

Webbing sling is made of high tenacity polyester by advanced international weaving technology, equipment and various sewing methods.

According to customer's requirement,the safety factor of sling could reach 4:1, 5:1, 6:1,7:1, 8:1 ,its load range is from 0.5t to 100t, which is produced according to International standard, for color and load capacity.

Use Instructions

as per EN1492 Part 1

Use and Maintenance Instructions

for TL-lift Flat Webbing

Lifting correctly

●Bofore the load is lifted, the weight of the load must bo determined by checking the delivery note, marking on the load or packing welght labels (eg. Steel profiles ) or by the crane weigher. The load must be within the carrying capacity shown on the sling labol for tho given angle of inclination.

●The larger the angle of inclination on multi-fall slings, the greater the tension force between individual slings that has to be taken up in addition to the load. The reductions in carrying capacity for inclinations 45"and from 45*to 60*are shown on the sling labol. Inclination angols larger than 60*aro not pormitted.

●Lifting the load without twisting or turning it as per the following instructions, On single-fall slings and chains, round slings and endless flat slings。the point of attachment should be above the load center, double-fall slings should be attached at both sides and above the load centre; 3 and 4-fall slings should be

attached at one level around the load centre. Preferably thoy should be attached with oqual spacing and above the load centre.

●In multi-fall cases where the slings are attached at different anglos of inclination, tho greatest strain is borne by the single sling with the smallest inclination angle. In extreme cases, a single vertical sling will bear the welght of the complete load, When multi-fall slings are attached asymmetrically, only half of the carrying capacity shown on the sling laboi may be carried.
