Art.No
|
WLL(KG)
|
WIDTH (MM)
|
COLOR
|
Stralght
lift
|
Basket
lift
|
|
Choker
hitch
|
|
|
TE8301
|
500
|
25
|
Violet
|
500
|
1000
|
700
|
400
|
500
|
|
TE8302
|
1000
|
50
|
Green
|
1000
|
2000
|
1400
|
800
|
1000
|
|
TE8303
|
1500
|
75
|
Yellow
|
1 500
|
3000
|
2100
|
1200
|
1500
|
|
TE8304
|
2000
|
100
|
Grey
|
2000
|
4000
|
2800
|
1600
|
2000
|
|
TE8305
|
2500
|
125
|
Red
|
2500
|
5000
|
3500
|
2000
|
2500
|
|
TE8306
|
3000
|
150
|
Brown
|
3000
|
6000
|
4200
|
2400
|
3000
|
|
TE8308
|
4000
|
200
|
Blue
|
4000
|
8000
|
5600
|
3200
|
4000
|
|
TE8310
|
5000
|
250
|
Orange
|
5000
|
10000
|
7000
|
4000
|
5000
|
|
TE8312
|
6000
|
300
|
Orange
|
6000
|
12000
|
8400
|
4800
|
6000
|

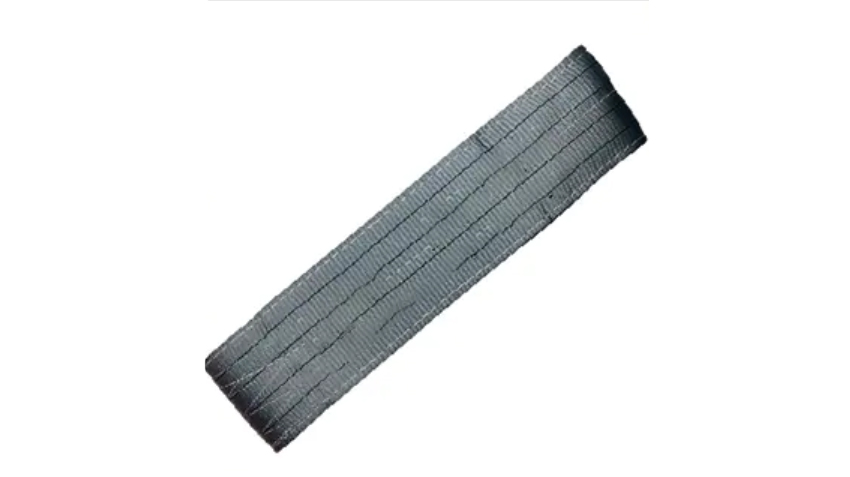

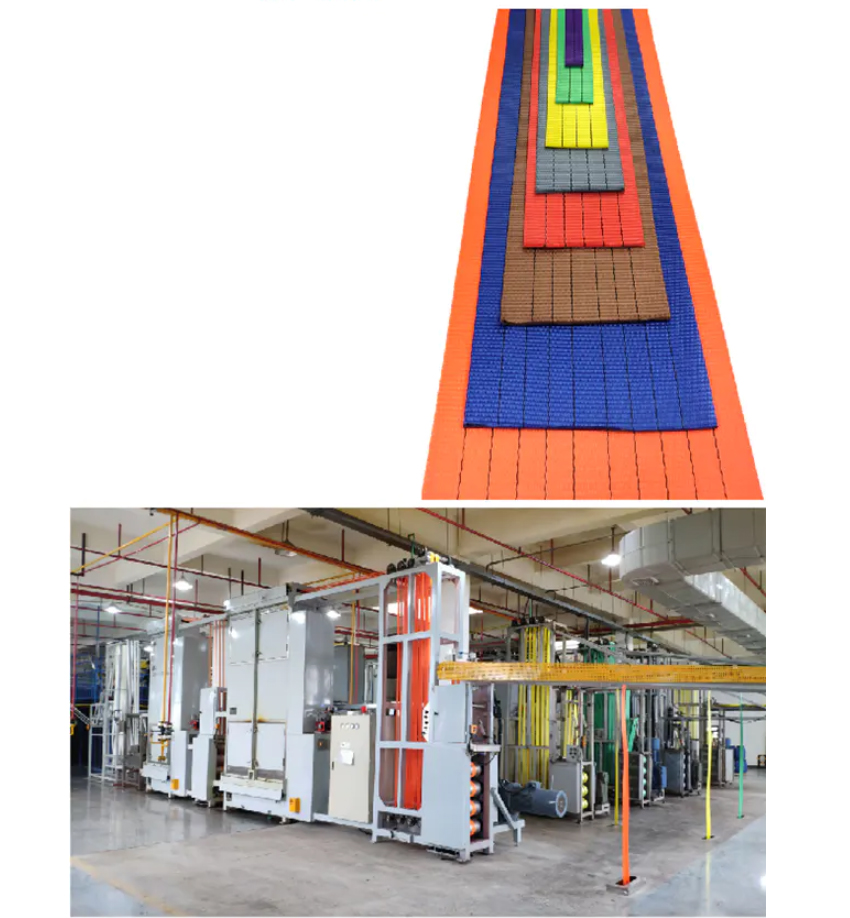

Webbing slings
TL-LIFT flat webbing slings are made of high tensile polyester (PES)with the following advantages:
●Low weight,thus easy to handle
●Protection against hand injury
●Protection against damage on the surface of cargo
●Highly flexible and adaptable to given shapes
●Equal pressure distribution over tension and pressure sensitive loads
●Heat resistant up to +100°C Moisture-resistant fabric,thus preventing frost damage (up to approx,-40°C)
●Low-strain,wear-resistant,long-life material (100%PES)
Use Instructions
as per EN1492 Part 1
Use and Mainte nance Instructions for TL-lift Flat Webbing
Lifting correctly
●Before the load is lifted, the weight of the load must be determined by checking the dolivery noto, marking on the load or packing weight labels (eg. Steel profiles) or by the crane weigher. The load must be within the carrying capacity shown on the sling label for the given angle of inclination.
●The larger the angle of inclination on multi-fall slings, the greater the tension force between individual slings that has to be taken up in addition to the load. The reductions in carrying capacity for inclinations 45° and from 45"to 60°are shown on the sling label. Inclination angols larger than 60*are not pormitted.
●Lifting the load without twisting or turning it as per the following instructions. On single-fall slings and chains, round slings and endless flat slings, the point of attachment should be above the load center, double-fall slings should be attached at both sides and above the load centre; 3 and 4-fall slings should be attached at one level around the load centre. Preferably
they should be attached with oqual spacing and above the load centro.
●In multi-fall cases where the slings are attached at different angles of inclination, the gre atest strain is borne by the single sling with the smallest inclination angle. In extreme cases, a single vertical sling will bear the weight of the comploto load. When multi-fall slings are attached asymmetrically, only half of the carrying capacity shown on the sling labei may be carried.
