Model:SCF

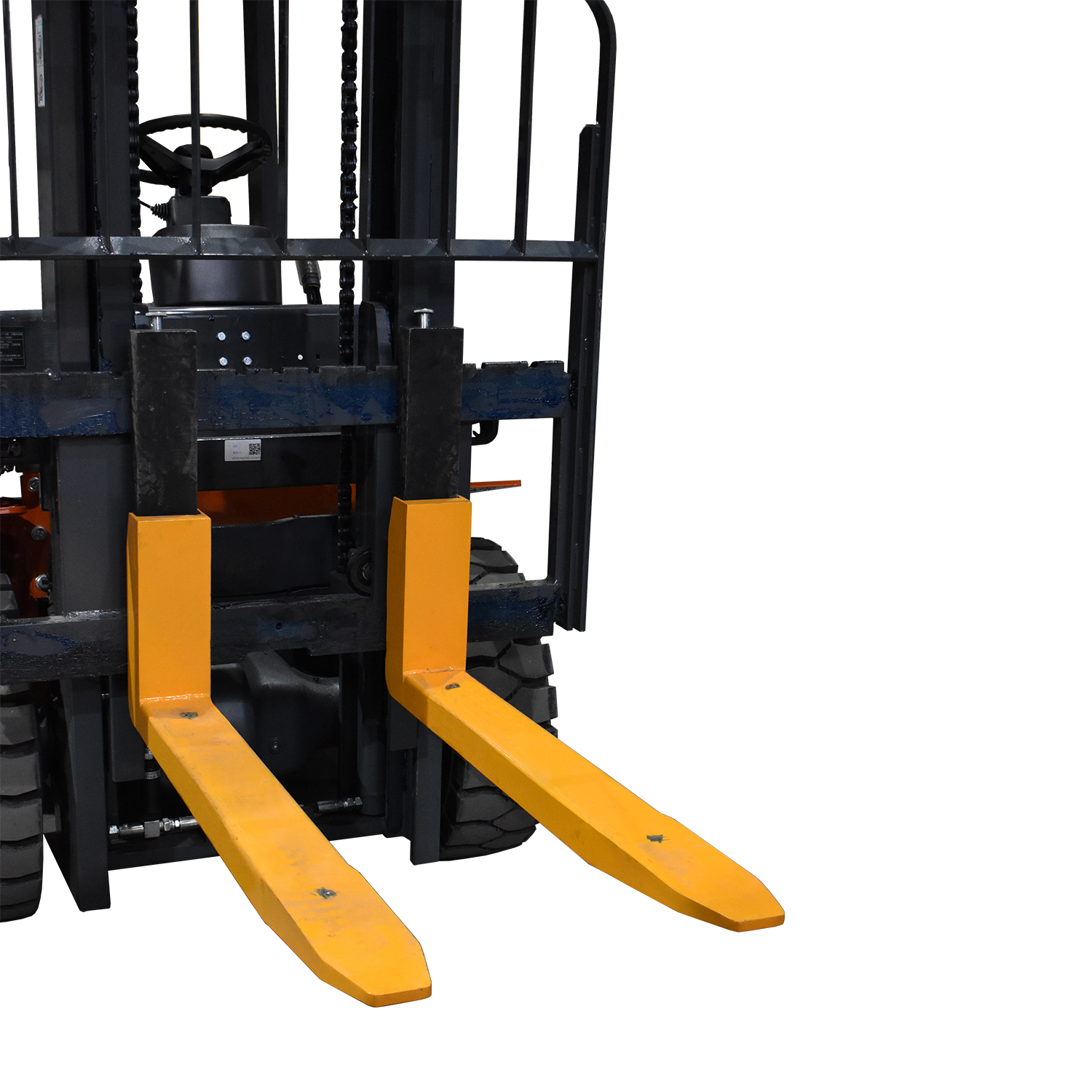

This product is widely used in factories, warehouses, docks and other logistics places. By instaling the scale fork into the standard forklit, the logistics and weighing operations are completed
in one, reducing the process of the traditional forklift and the weighing system, and greatly improving the work efficiency. At the same time, the weighing data can be wirelessly transmitted、to the warehouse management system to reduce input errors.
High accuracy, next generation technology, powered by environmentally friendly compact lithium battery. No wiring, easy installation within minutes. Standard wireless data transfer combability. With only 58mm fork height and no external components on the fork shank just like a standard lift truck fork.
Advantages:
Li-ion battery packs
Each fork has its own power source comes from compact rechargeable Li-ion battery packs with maximum of 80 hours working time. Battery saving sleep mode for the forks with automatic start up. .
Easy fit for fork positioners
All-in-one design batteries and wireless modules, elimination of the cover plates, leave no external components on the fork shank, making SCF even more easy to fit onto fork positioners.
Wireless Connection
Bluetooth Power saving and strong compatibility.
Mast tilt compensation
The indicator has automatic tilt compensation, to automatically correct weight errors that occur when the mast tilts and the forks are not in horizontal position.
Max accuracy
Each fork device is equipped with two sensers gives total of 4 sensors for each system to provide redundancy and max accuracy.

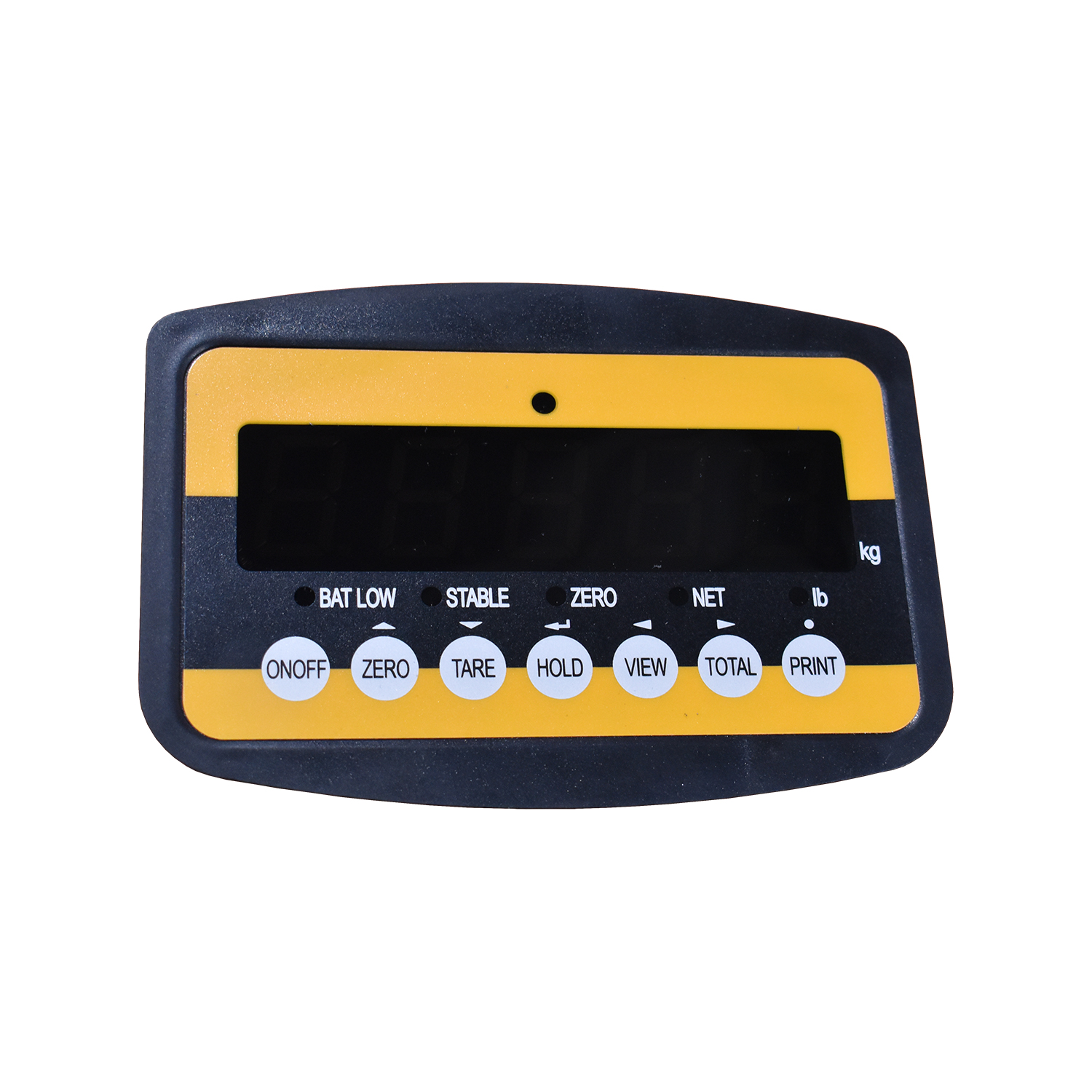

Use with multifunction indicators or wireless handheld terminal Can be used with multifunction indicators for weighting, dosing, accumulation or piece counting and can be also used with wireless handheld terminal for additional functionality you need.
| Model |
|
SCF20 |
SCF20P |
SCF30 |
SCF30P |
SCF50 |
SCF50P |
| Capacity |
kgs |
2000 |
2000 |
3000 |
3000 |
5000 |
5000 |
| Masuring range |
kgs |
1 |
1 |
1 |
1 |
2 |
2 |
| sensors |
aty |
2 |
2 |
2 |
2 |
2 |
2 |
| Max accuracy |
|
0.10% |
0.10% |
0.10% |
0.10% |
0.10% |
0.10% |
| Monitor |
|
LCD standard |
LCD with printer |
LCD standard |
LCD with printer |
LCD standard |
LCD with printer |
| Fork Size LxWxT |
mm |
1150x125x58 |
1150x125x58 |
1150x125x58 |
1150x125x58 |
1150x125x58 |
1150x125x58 |
| ISO Class (Fork installation) |
|
ll |
ll |
lll |
lll |
lv |
lv |
| Ovarload prolecton |
% |
150 |
150 |
150 |
150 |
150 |
150 |
| Protection Class |
|
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
| Operating Temperature |
℃ |
-10 TO 60 |
-10 TO 60 |
-10 TO 60 |
-10 TO 60 |
-10 TO 60 |
-10 TO 60 |
Functionality:
Automatic and manual zero correction, gross/net weighing, sleep mode for the forks with automatic start up, overload protection 150% on mechanical construction.
Optional:
1. We can customize warehouse management system or match product with current management system according to customer' s requirements. Weight data can be uploaded
in real time or stored and upload later.

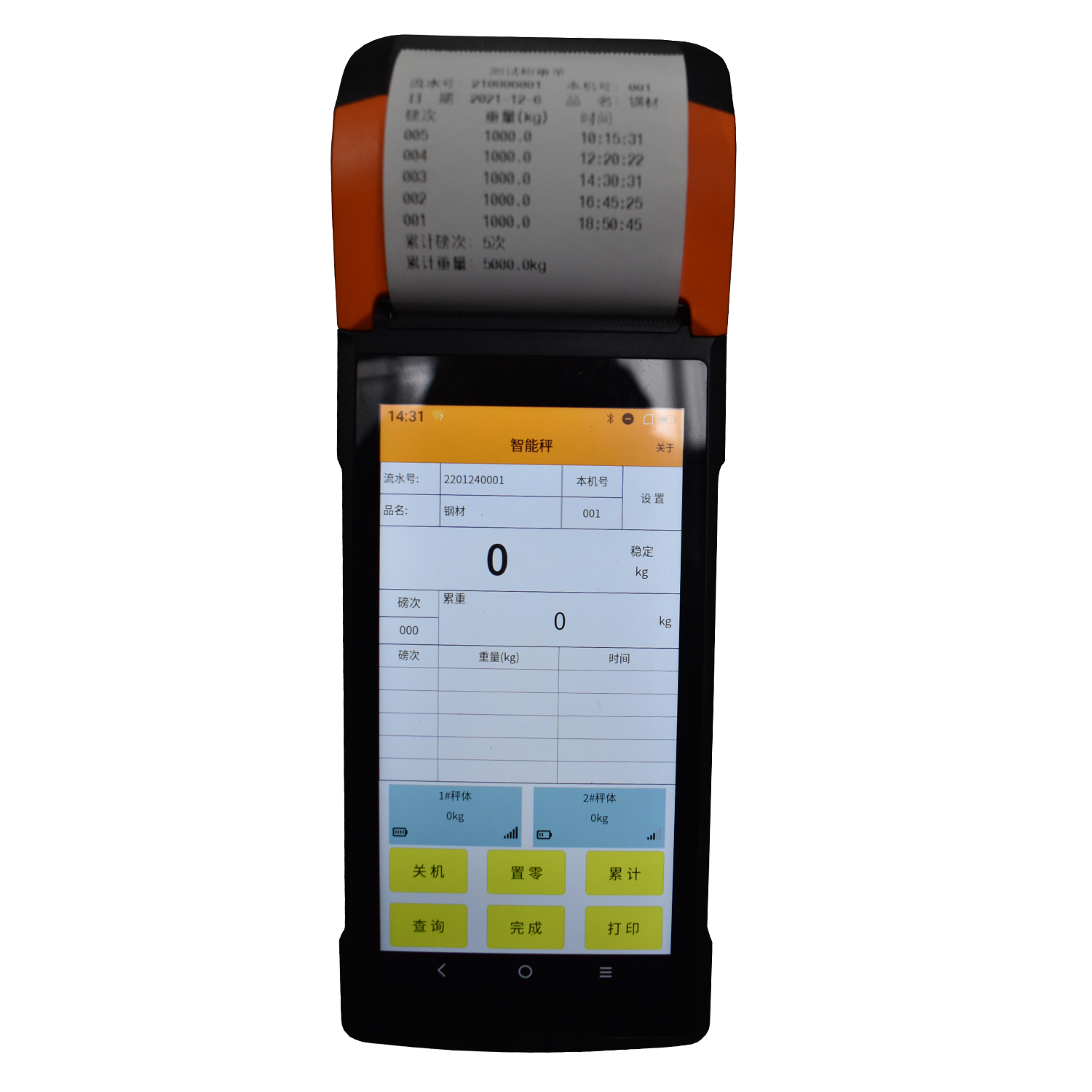

2. Handheld unit with thermal printer available: For data logging, upload and printing.
