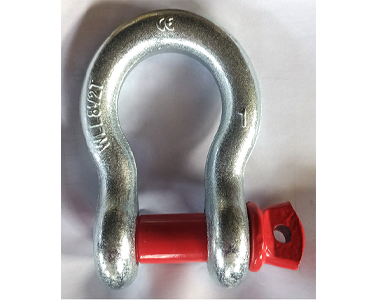

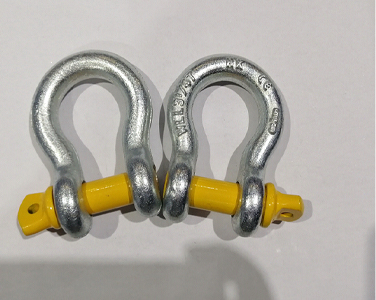

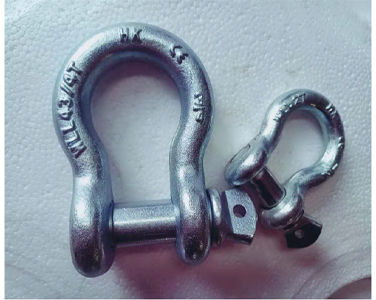

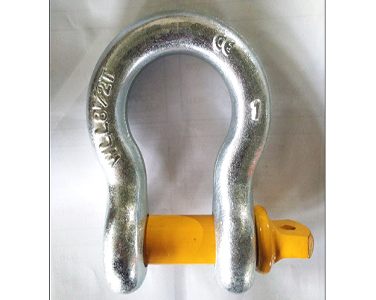

Shackle-G209 US SCREW PIN ANCHOR SHACKLE

G209 US SCREW PIN ANCHOR SHACKLE

1. Size：From 3/16" to 3"

WLL: From 0.3T to 85T

2. For lifting application. Drop forged, quenched and tempered

Body: Carbon steel. Pin: Alloy steel

Min breaking strength is 4 times or 6 times of the working load limit.

3. Surface Finish is usually Electric galvanized or hot dip galvanized

Powder Plasticized is also available

4. Marking: WLL, SIZE. or as per customers' request.

5. Package：PP Bag / Carton. Plywood/Steel pallet

Contact now

Ask a question

PREV：Shackle-G210 US SCREW PIN CHAIN SHACKLE

NEXT：No next products

PRODUCT DESCRIPTION

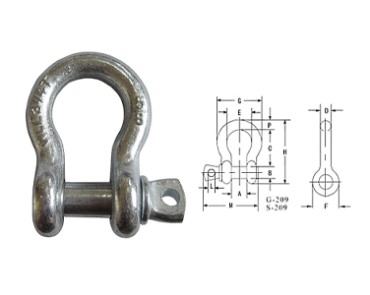

Product Code	Weight	Nominal	WLL (t)	Dimensions(mm)
Product Code	Each (kg)	Size (in.)		Dimensions(mm)
209	209			A	B	C	D	E	F	G	H	L	M	P
HLF01A01	0.03	3/16	1/3	9.65	6.35	22.4	4.85	15.2	14.2	24.9	37.3	4.06	28.4	4.85
HLF01A02	0.05	1/4	1/2	11.9	7.85	28.7	6.35	19.8	15.5	32.5	46.7	4.85	35.1	6.35
HLF01A03	0.09	5／l6	3/4	13.5	9.65	31	7.85	21.3	19.1	37.3	53	5.6	42.2	7.85
HLF01A04	0.14	3/8	1	16.8	11.2	36.6	9.65	26.2	23.1	45.2	63	6.35	51.5	9.65
HLF01A05	0.17	7/16	1-1/2	19.1	12.7	42.9	11.2	29.5	26.9	51.5	74	7.85	60.5	11.2
HLFO1A06	0.33	1/2	2	20.6	16	47.8	12.7	33.3	30.2	58.5	83.5	9.65	68.5	12.7
HLFOlA07	0.62	5/8	3-l／4	26.9	19.1	60.5	16	42.9	38.1	74.5	106	11.2	85	17.5
HLFO1A08	1.07	3/4	4-3/4	31.8	22.4	71.5	19.1	51	46	89	126	12.7	101	20.6
HLF01A09	1.64	7/8	6-1/2	36.6	25.4	84	22.4	58	53	102	148	12.7	114	24.6
HLF01A10	2.28	1	8-l／2	42.9	28.7	95.5	25.4	68.5	60.5	119	167	14.2	129	26.9
HLF01A11	3.36	1-1/8	9-l／2	46	31.8	108	29.5	74	68.5	131	190	16	142	31.8
HLFO1A12	4.31	1—1／4	12	51.5	35.1	119	32.8	82.5	76	146	210	17.5	1 56.0	35.1
HLF01A13	6.14	1—3／8	13-1/2	57	38.1	133	36.1 0	92	84	162	233	19.1	174	38.1
HLFO1A14	7.8	1一l／2	17	60.5	41.4	146	39.1	98.5	92	175	254	20.6	187	41.1
HLF01A15	12.6	1—3／4	25	73	51	178	46.7	127	106	225	313	25 40	231	57
HLF01A16	20.4	2	35	82.5	57	197	53	146	122	253	348	31	263	61
HLF01A17	38.9	2．1／2	55	105	70	267	69	184	145	327	453	35.1	330	79.5
