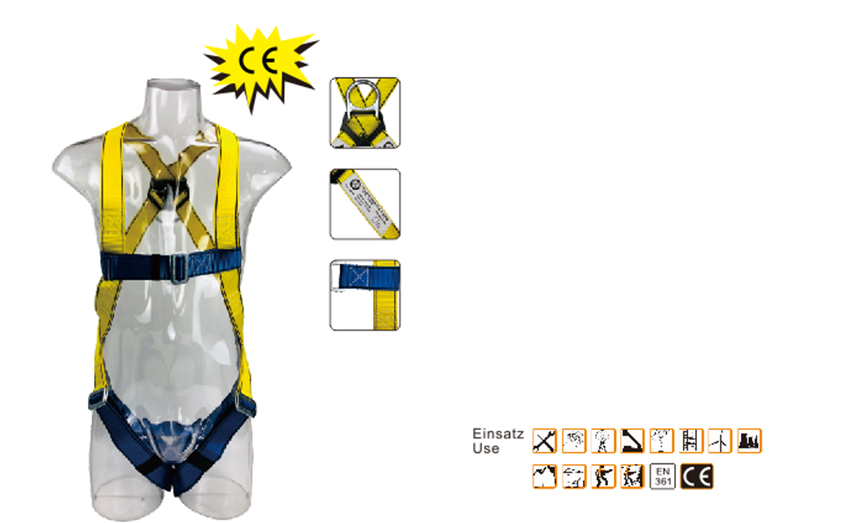

TE 5101
Full Body Harness
●Webbing 45mm
●1 anti-falling dorsal D-ring
●Adjustable thigh and chest strap
●EN 361-2002 Personal protective equipment against falls from a height-Full body harness.
●Specifies the requirements, instructions for use, test methods, packaging and marking for full body harness. Also includes detailed definitions.
1.Insulation material
With function of Insulation, widely used in special industry, i.e. when working at height for electric power industry, it can protect the operating personnel from electric shock.
2.Aluminum material
With characteristics of high-duty, light in weight, corrosion resistance, nice finishing, the material can reduce load on personnel at height, which will protect human security effectively during relaxed work.
3.Carbon steel material
With characteristics of high-duty, durable, stable, economic, the material is used in broad range with long service life, it will provide more reliable safeguard to operating personnel.

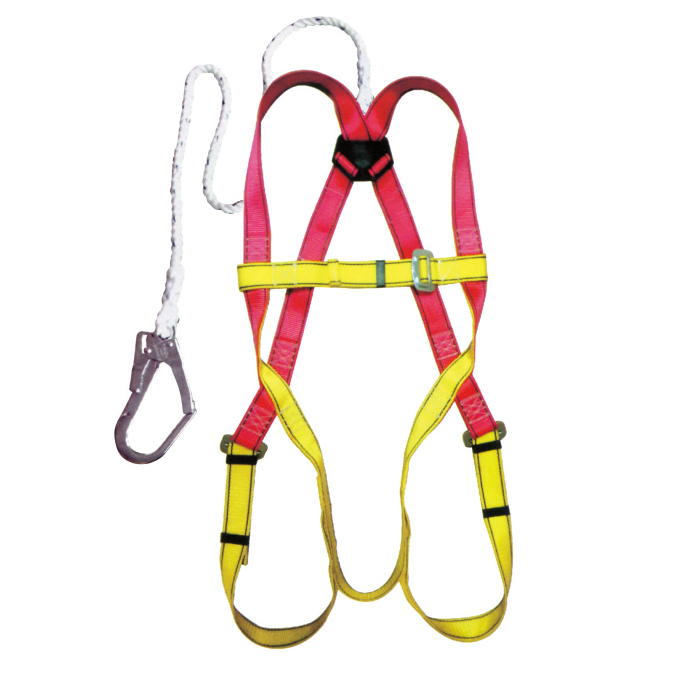

Safety harness
In case that aman should work at the height of 2 meters or above and there exists falling risk, fall arrest protective measures must be taken for him according to relevant health and safety provisions.
Fall arrest items, which include full body safety harness, safety belt and shock absorber rope lanyards made by Hangzhou TL E Tools Co.,Ltd can protect workers' security and make it safer when he is working at height.
The Basic of a Personal Fall Arrest System Personal fall arrest system is made to prevent the worker under an anchorage point falling from height Body Wear Full Body Harness: The personal protective equlpment worn by the worker.
-Its role is to hold the worker if a fall occurs, so that the worker will not be injured nor slip out of the harness.
-The only acceptable torm of body wear for use in fall arrest is the full body harness.
-I1 should be selected based on the work to be performed and the work environment.
-E ach anchorage point on the harness should have a static reslstance > 1 5KN for 3minutes (EN361 and EN 358 ).
Connecting Device
Intermediale attachment: This is the critical link that joIns the harness to the anchorage point or connector (eg: shock absorbing lanyard, fall arrest block, rope grab).
-Its role is to limit the free fall of the worker and should be selected based on work to be performed and the work environment.
-The potential fall distance must be calculated to determine the type of intermediate attachment to be used,
