PRODUCT DESCRIPTION

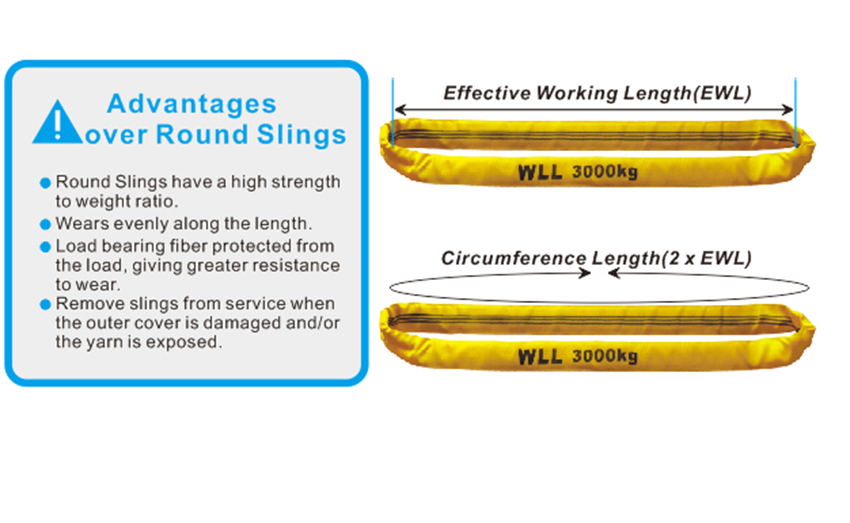

Round Slings

Round Slings are manufactured to EN 1492-2 and have a safety factor of 7:1.The load bearing fibers are wound together to form an endless hank. The working load limit is determined by number of turns in the hank.

Art.No	WLL(KG)	WIDTH(MM)	COPLOR	wLL in kg at different modes
Art.No	WLL(KG)	WIDTH(MM)	COPLOR	Stralght l l	Basket irr y		choker hlitch g
TE8401	1000	45	Violet	1000	2000	1400	800	1000
TE8402	2000	47	Grcen	2000	4000	2800	1600	2000
TE8403	3000	58	Yellow	3000	6000	4200	2400	3000
TE8404	4000	72	Grey	4000	8000	5600	3200	4000
TE8405	5000	83	Red	5000	10000	7000	4000	5000
TE8406	6000	9o	Brown	60oo	12000	8400	4800	6000
TE8408	8000	102	Blue	800o	16000	11200	6400	8000
TE8410	10000	116	orange	10000	20000	14000	8000	10000
TE8412	12000	116	orange	12000	24000	16800	9600	12000
TE8415	15000	130	orange	15000	30000	21000	12000	15000
TE8420	20000	130	orange	20000	40000	28000	16000	20000
TE8425	25000	175	orange	25000	50000	35000	20000	25000
TE8430	30000	175	orange	30000	60000	42000	24000	30000
TE8440	40000	220	orange	40000	80000	56000	32000	40000
TE8450	50000	220	orange	50000	100000	70000	40000	50000

Instruction for ins pection of Round Slings

●Round slings must be taken out of service when:

●Damage is caused by aggressive materials.

●The outer casting or its sewing is damaged and the core is visible.

●In that case, the sling must be taken out of service and inspected by a competent person. The sling may only be reused by a component person or a competent person confirms its safety after it has been repaired.

●Deformation is caused by heat absorption (friction, radiation).

●When fittings are deformed or damaged.

● Damage caused by heat and a glossy surface prod uced by frictions, in extreme cases the surface fibres can fuse together.
Reference:

EN 1492-2+A1:2008

Textile slings-Safety-part2:

Round slings,made of man-made fibres ,for

general purpose use

German version DIN EN 1492-2
