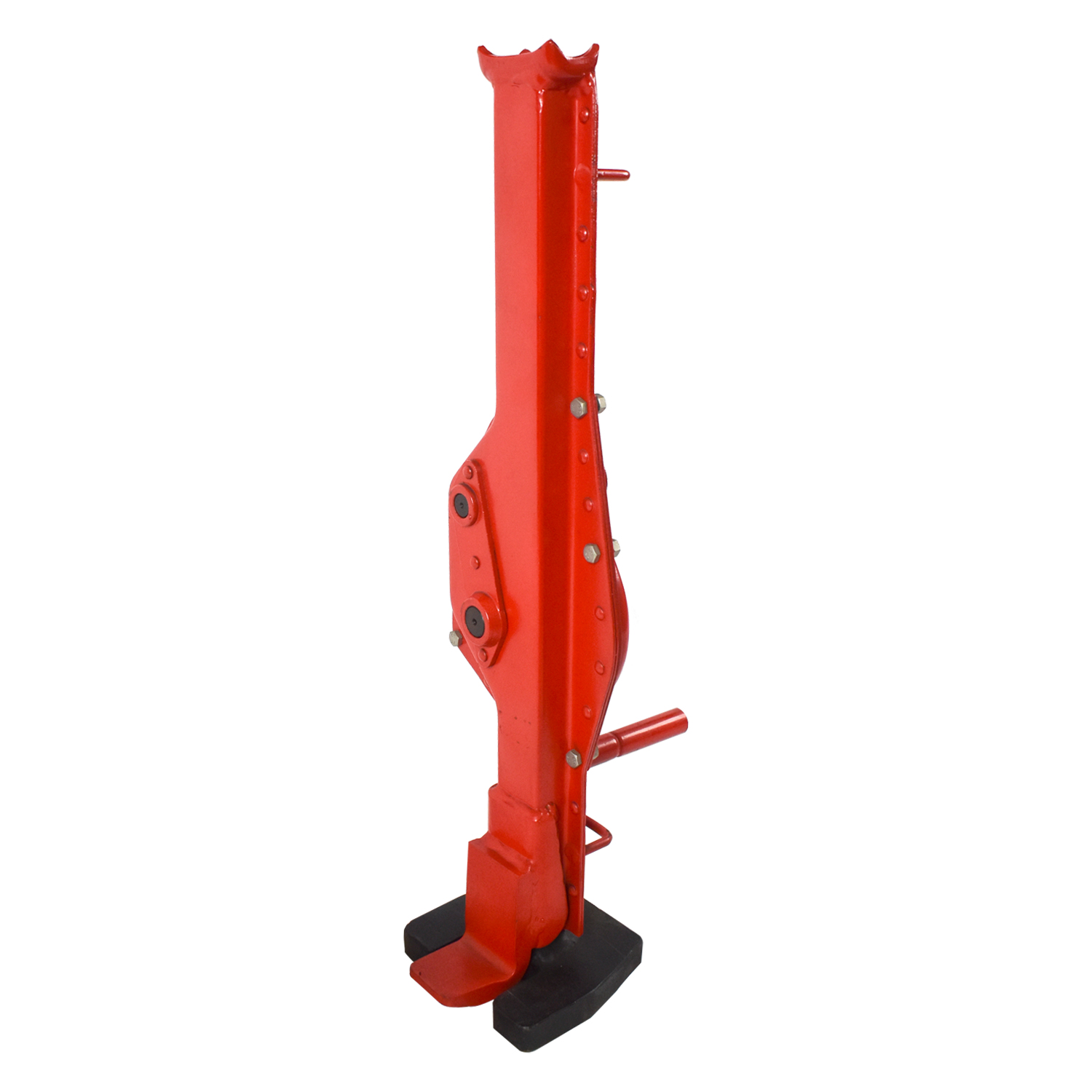

Adjustable Claw Mechanical Jack-SJA

Model

SJL

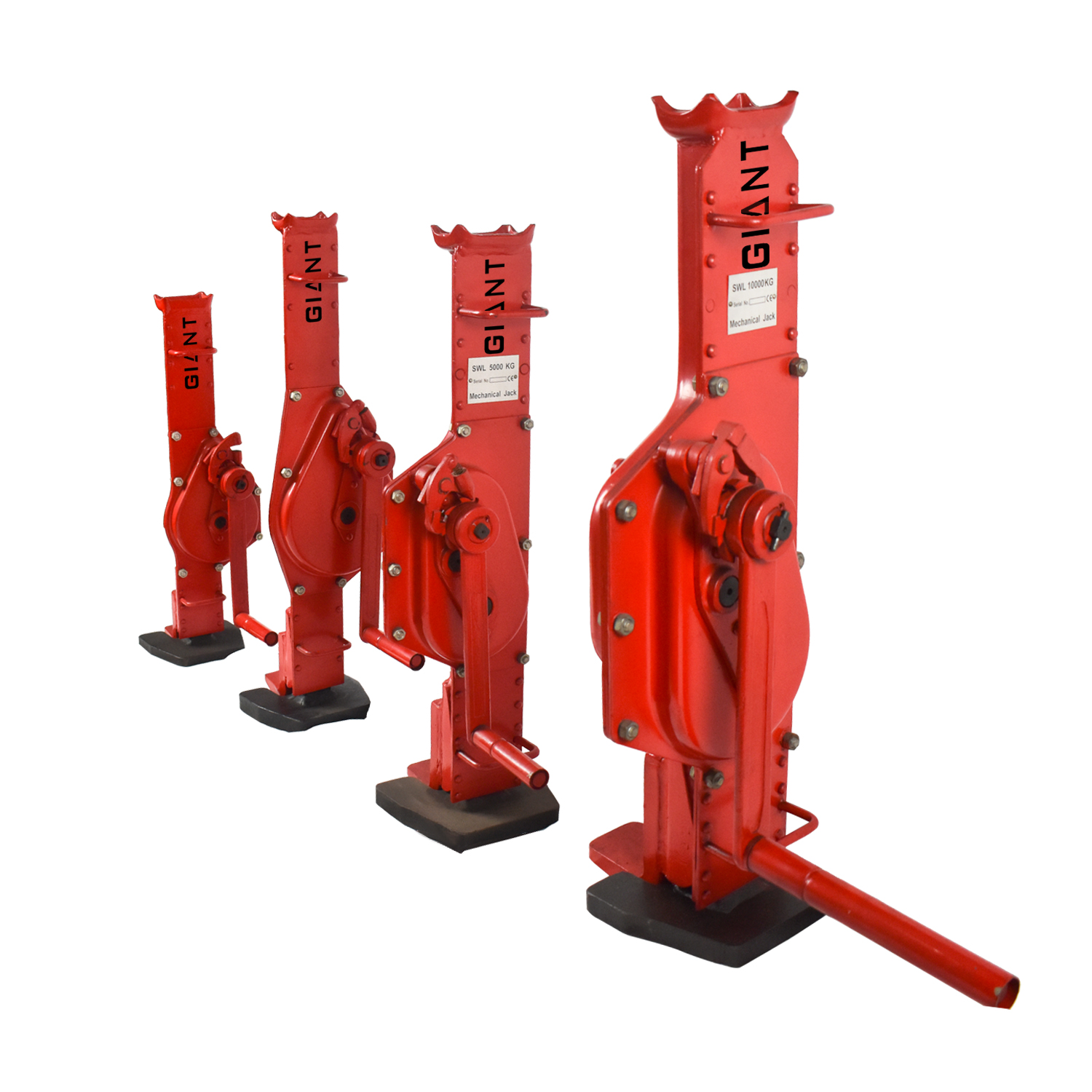

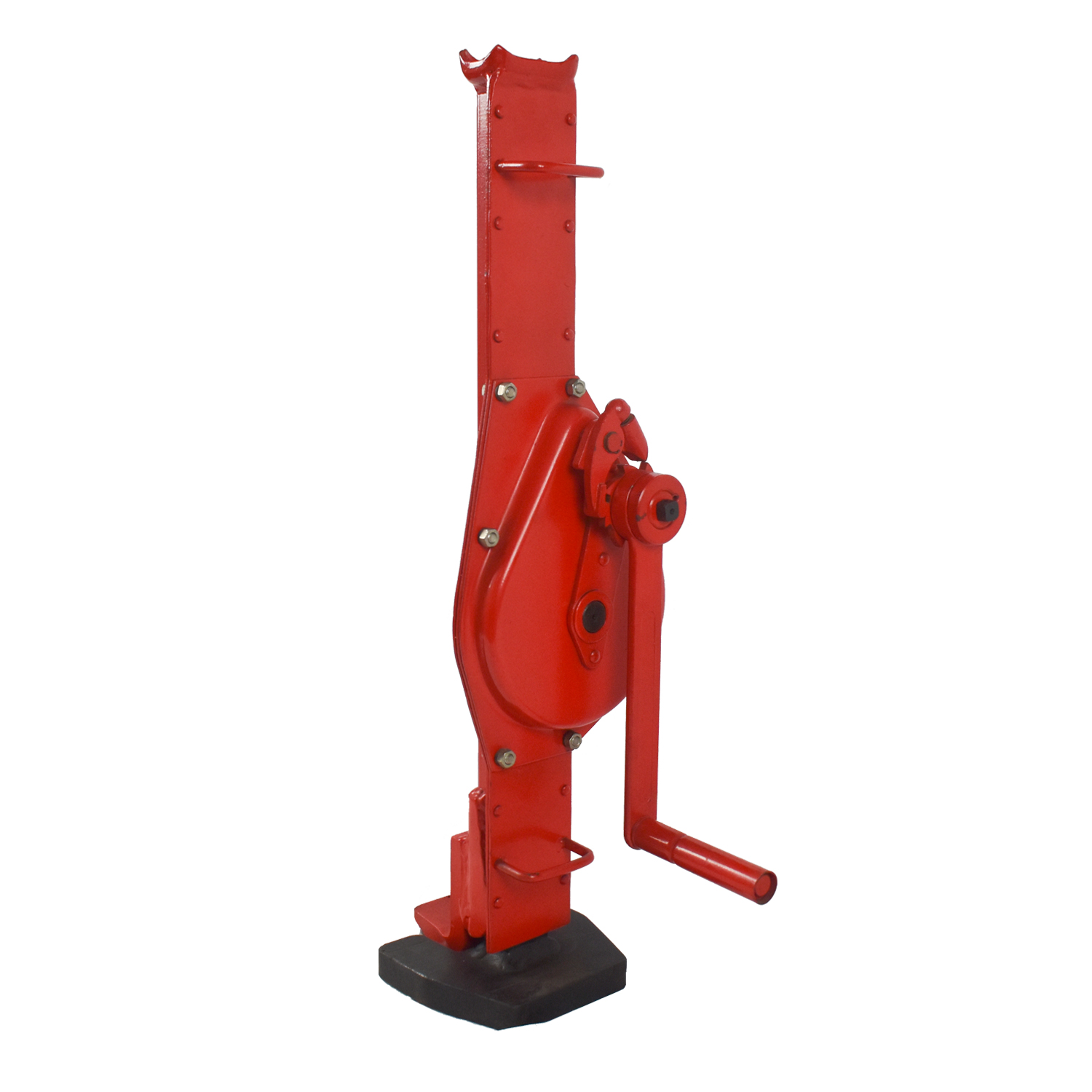

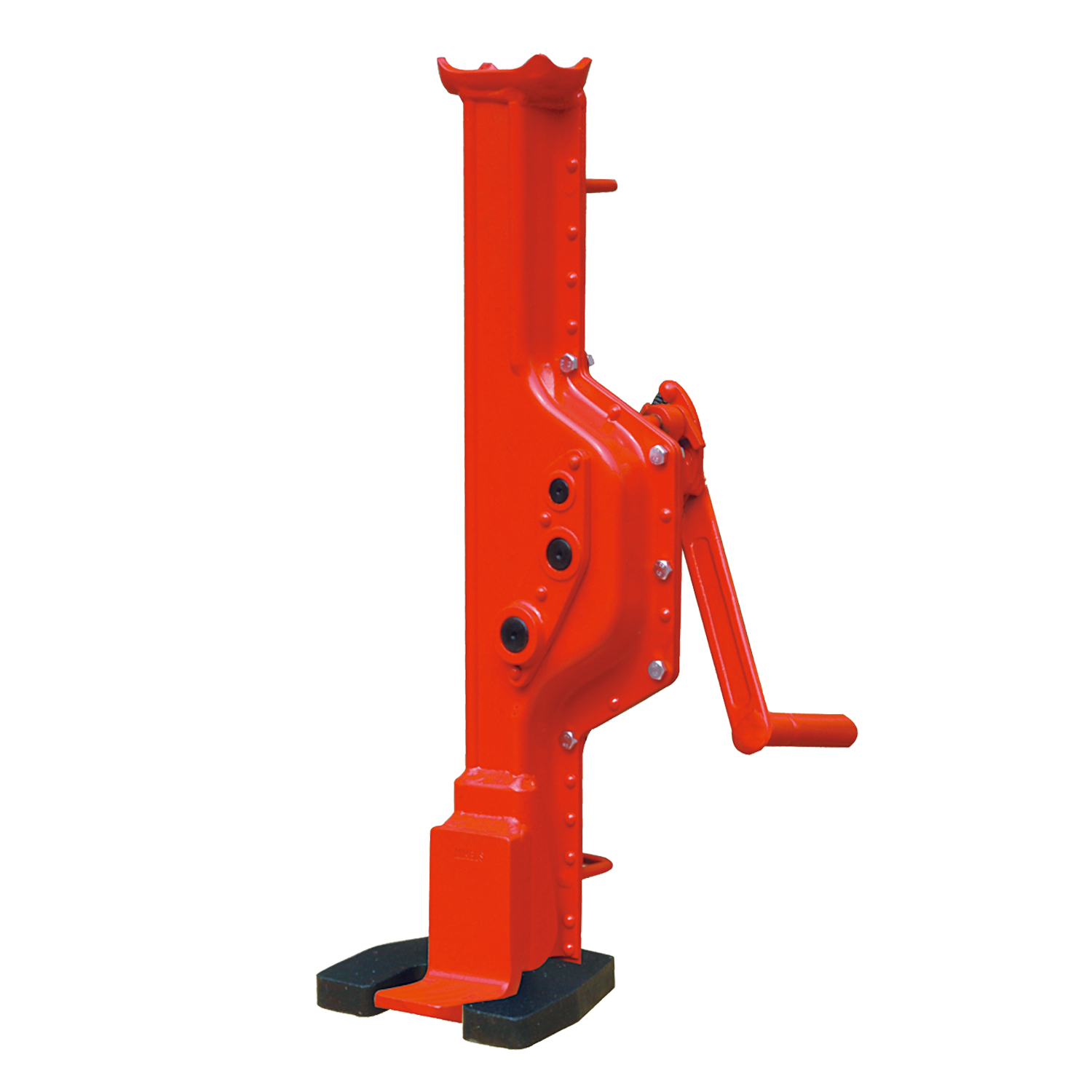

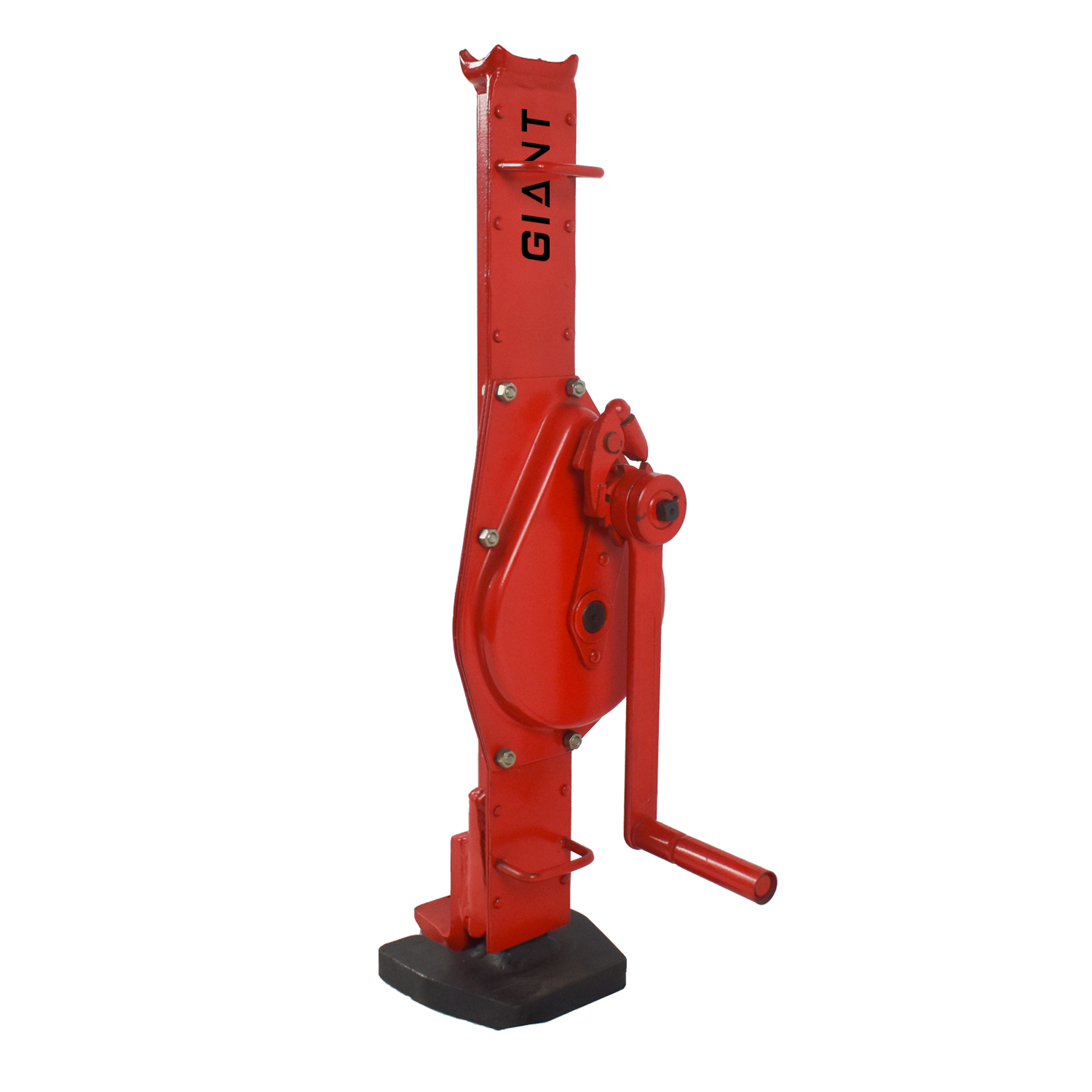

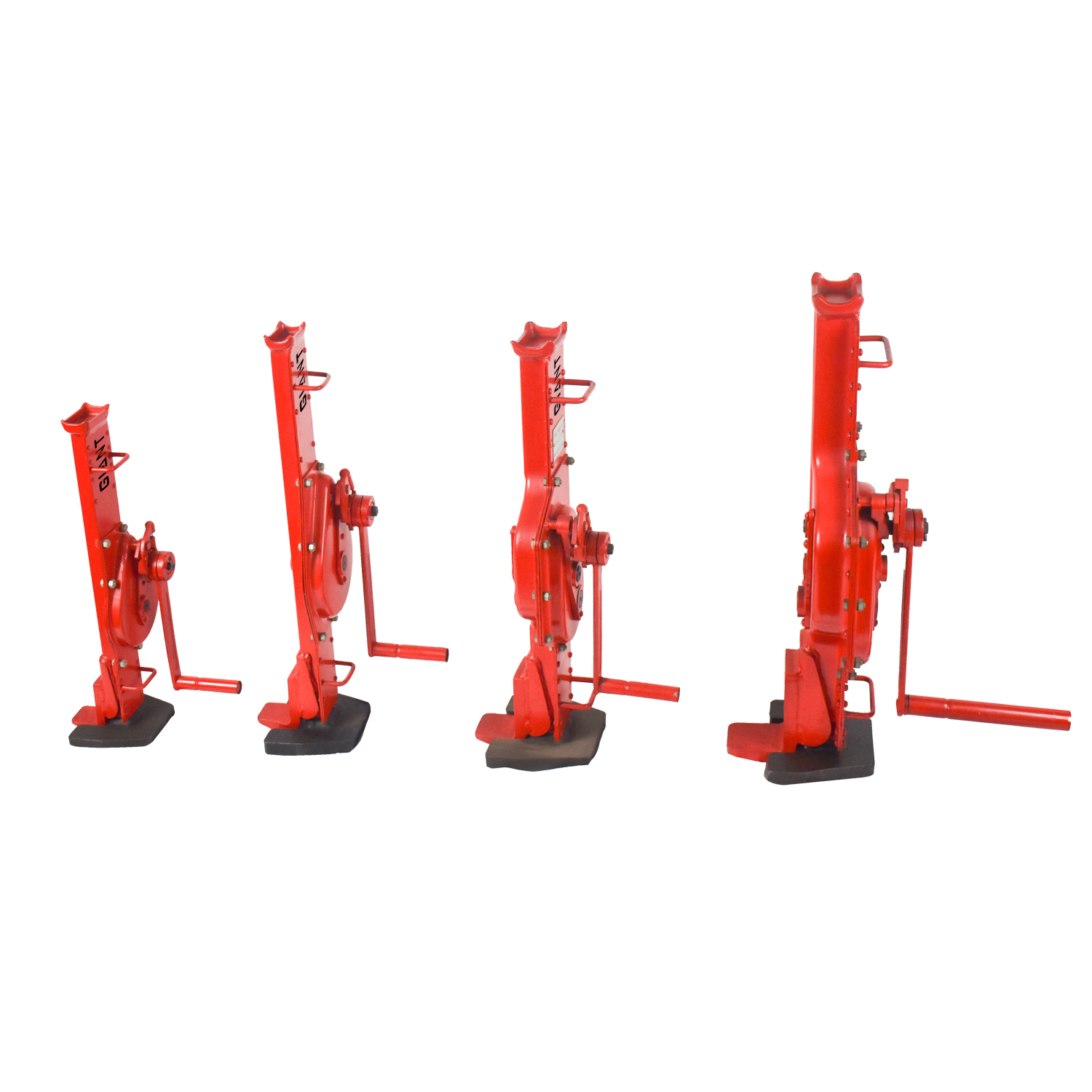

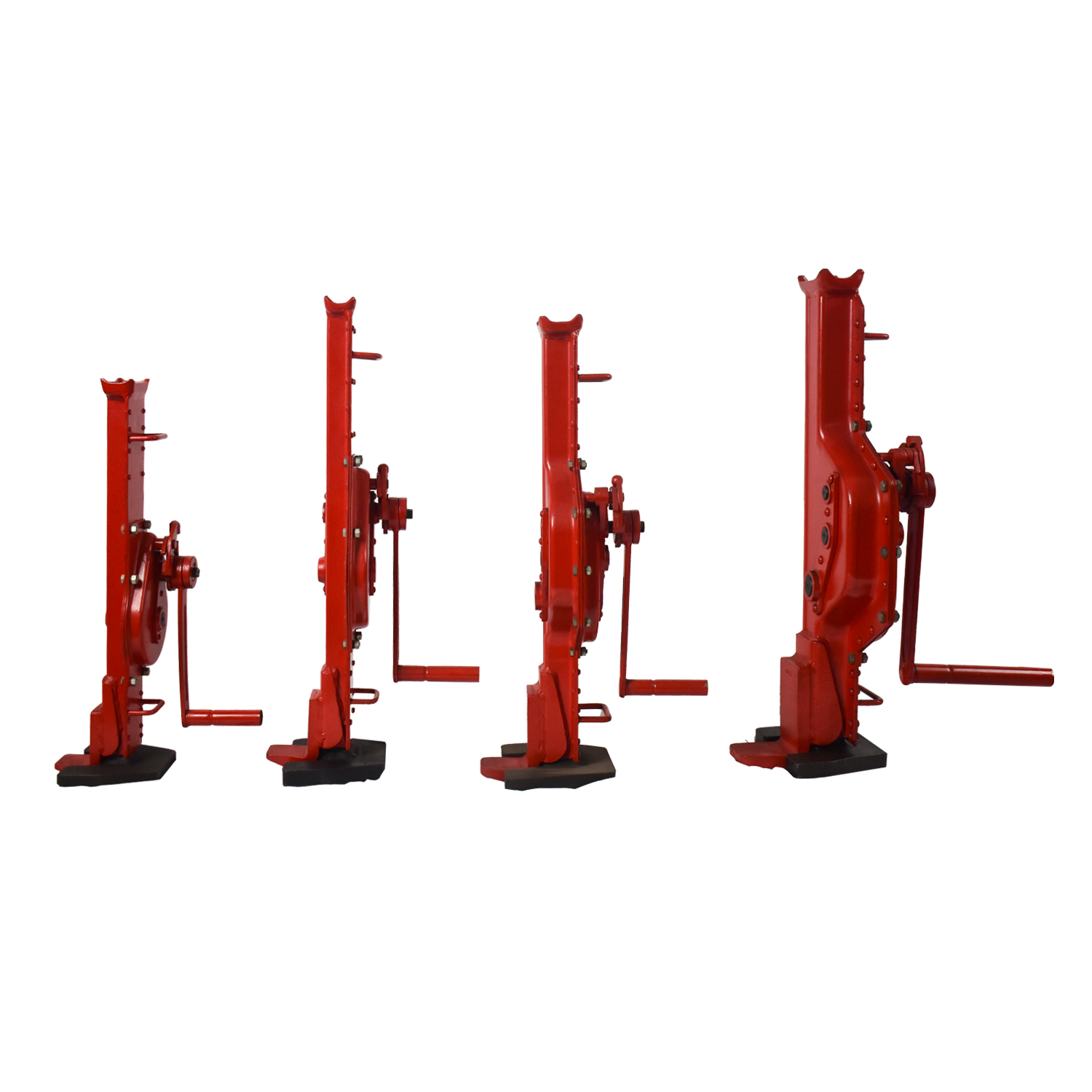

Mechanical Steel Jack

The mechanical steel jack is designed by mechanical transmission principle. It is one of the best lift tools used in repairing shops and factories. Mechanical steel jack doesn’t have hydraulic oil or seal ring so it can be easily maintained. Because of the gear rate design, there is no rick of unexpected falling.

Features:

Wide and strong base design and high-quality weld between the rack that can easily support heavy duty task

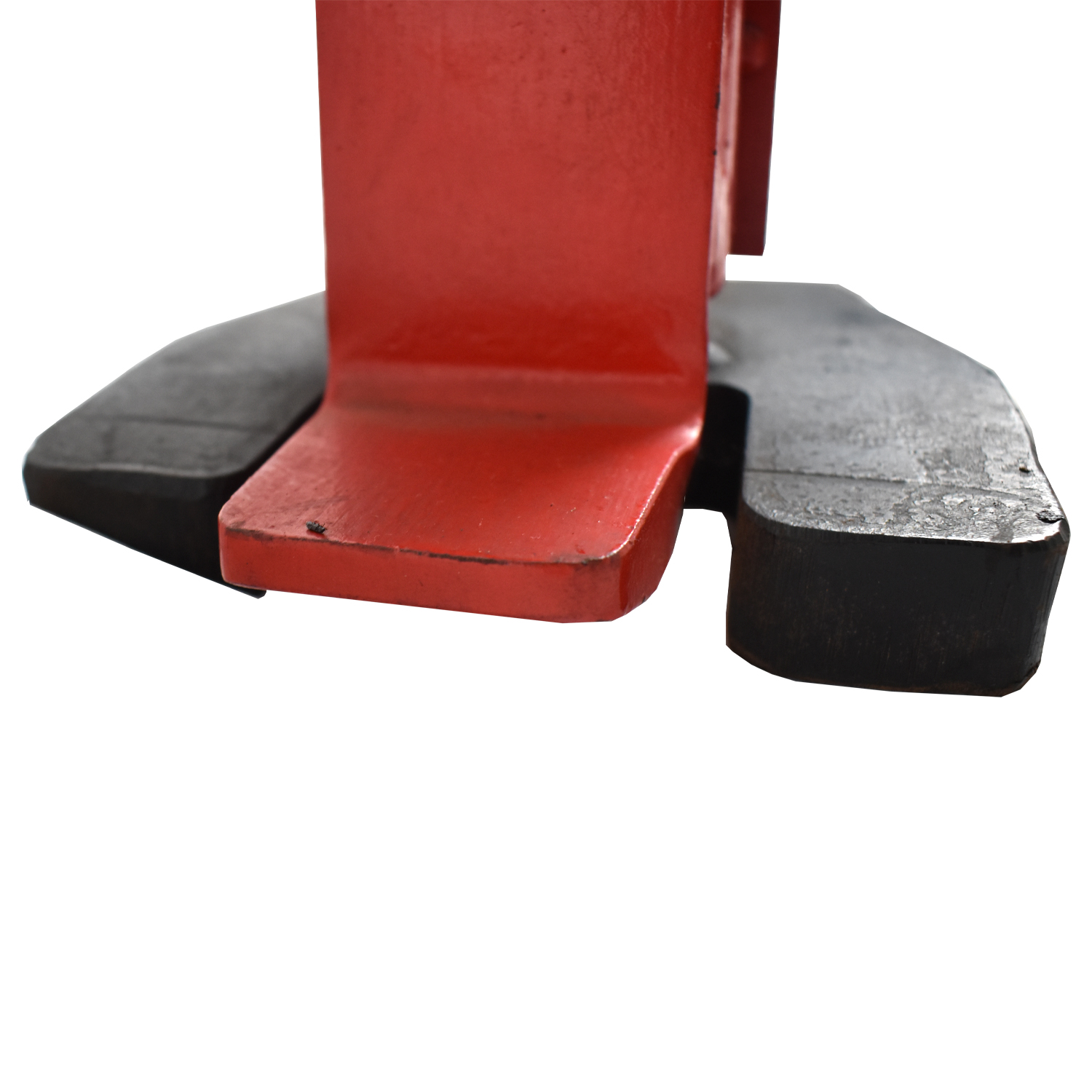

Equipped with one-time molding claw with texture ensures stability

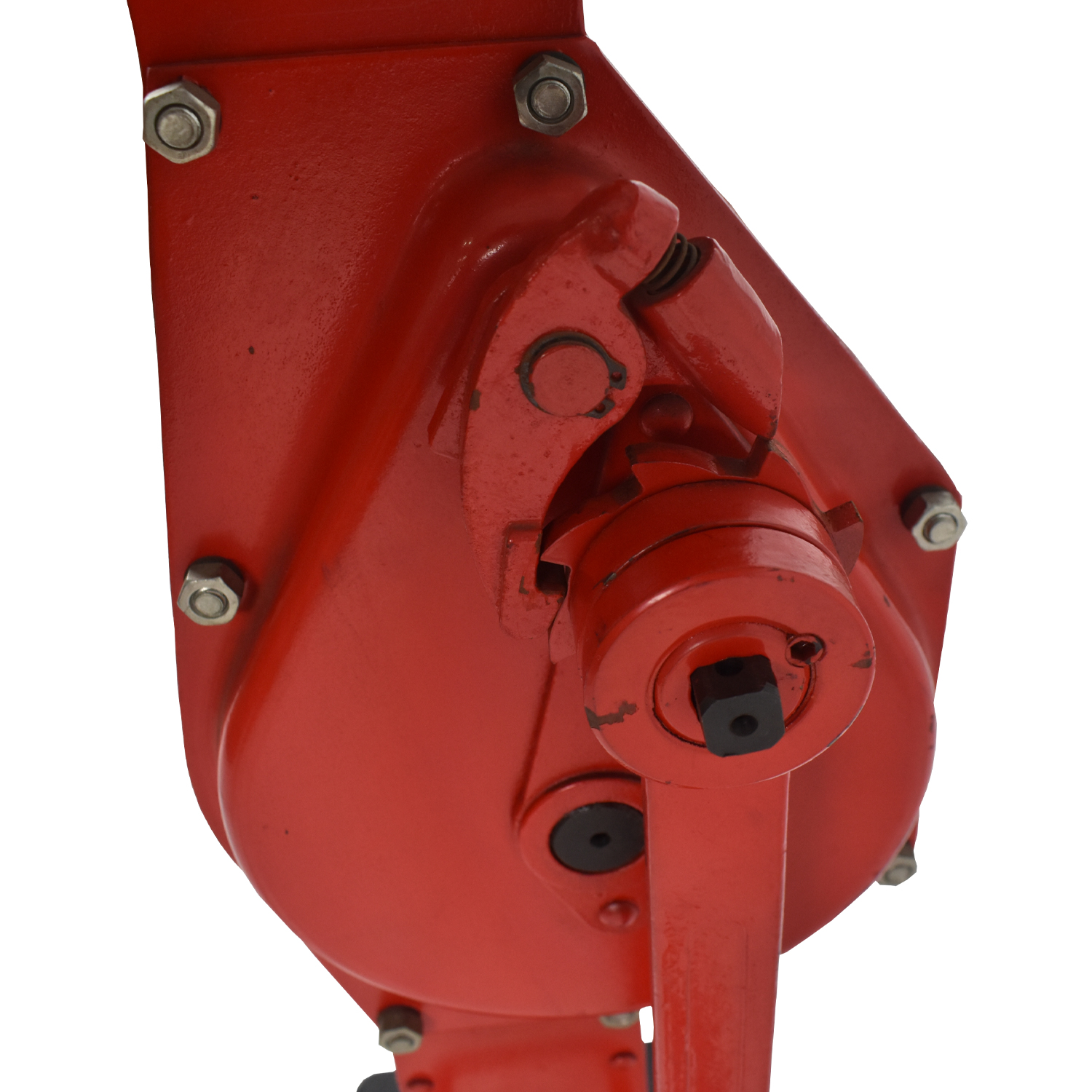

Solid gear rack and gear component are produced with high strength and precision along with high gear rate design brings you easy smooth operating experience
One-time molding solid shell with riveting and welding process, makes the product sturdy and durable
Equipped with folding handle
The lifting range is much higher compare to hydraulic jack, the lifting or lowering speed is controllable.
Mechanical steel jack doesn’t have hydraulic oil or seal ring so it can be easily maintained. Because of the gear rate design, there is no rick of unexpected falling

Contact now

Ask a question

PREV：Extra Low Mechanical Jack-SJL

NEXT：Standard Mechanical Jack-SJ

PRODUCT DESCRIPTION

Model		SJ1.5	SJ3	SJ5	SJ10	SJ16	SJ20	SJ25	SJL3	SJL5	SJL10
Rated capacity	(kg)	1500	3000	5000	10000	16000	20000	25000	3000	5000	10000
Test load	(kN)	16.5	33	55	110	176	220	275	36.8	61.3	122.5
Hand shake to lift full load	(N)	190	196	235	431	580	650	750	280	280	530
The number of operator		1	1	1	2	2	2	2	1	1	2
Lifting height	(mm)	300	300	300	300	400	400	400	300	300	300
Dimensions	A(mm)	77	83	105	123	135	135	155	83	108	124
	B(mm)	110	130	170	173	150	150	200	130	180	180
	C(mm)	600-900	720-1090	737-1095	794-1175	830-1130	880-1180	950-1360	735	735	805
	D(mm)	60-360	70-425	87-445	100-481	115-425	115-425	110-520	30	30	30
	E(mm)	55	54	63	71	85	85	90	60	71	86
	F(mm)	40	45	64	74	85	85	90	45	68	76
	G(mm)	102	165	202	220	182	182	230	138	170	170
	H(mm)	225	285	285	330	330	330	330	250	250	300
	K(mm)	121	200	190	260	281	281	380	185	192	220
	R(mm)	119	140	156	185	224	224	212	130	130	250
	S(mm)	260	235	275	280	202	202	205	235	257	247
	T(mm)	133	133	133	258	258	258	258	128	128	250
Net weight	(kg)	10.7	18.9	31.62	52.64	64.5	72	91	23	32	53
