Fast
The fastest lifting speed of the steel wire rope type station intelligent hoister can reach 44m/min (the fastest lifting speed of the ring chain type station intelligent hoister can reach 30m/min). Within the rated range, it can move at any variable speed to achieve efficient workpiece handling.
Accurate
The lowest speed of the station intelligent hoister is 0.05m/min (the slowest speed is zero speed lifting), so that the workpiece can be seamlessly connected and accurately positioned.
Stable
The station intelligent hoister has the characteristics of stable speed control, almost no vibration, high efficiency, less heating and high control. In the rated operation area, can realize constant torque, low inertia, good fast response of the system, and no noise, avoiding shaking and bouncing of the workpiece during moving.
Handle/Suspension dual mode
Handle mode:
According with ergonomic, one person can move the load up and down with single hand, and control it correctly.
Suspension mode:
Controlled by fingertip, fast and slow movement according to the operator, effortless instantaneous response. The operator can also directly control the load with both hands to achieve accurate positioning.
Stepless speed change/controllable speed
G-Lift station intelligent hoister can move quickly or slowly with the action of the operator and drift at will. It is especially suitable for assembly applications that require both rapid movement and slow and accurate position. The maximum lifting speed can reach 44m/min, and the minimum lifting speed can be as low as 0.05m/min, which greatly improves the production handling efficiency and handling accuracy.
Precise position function
Extremely accurate position control function enables operators to control precise and fragile work items accurately and stably.
Safe and reliable
Over load protection function:
Automatic weight sensing can sense the load weight. If the load exceeds the rated load, it will alarm immediately and will not allow the load to be lifted.
Anti-rebound function:
Prevent the sudden change of the load weight attached to the G-lift station intelligent hoister from moving and rebounding, and eliminate potential safety hazards.
Photoelectric induction function:
The photoelectric sensor is integrated in the operating handle of G-lift station intelligent hoister, and the device can only be moved when the operator is in place to prevent accidental touch.
Power off protection function:
When the power failure occurs, the safety brake of the intelligent hoister will be automatically locked, and the load will not fall.

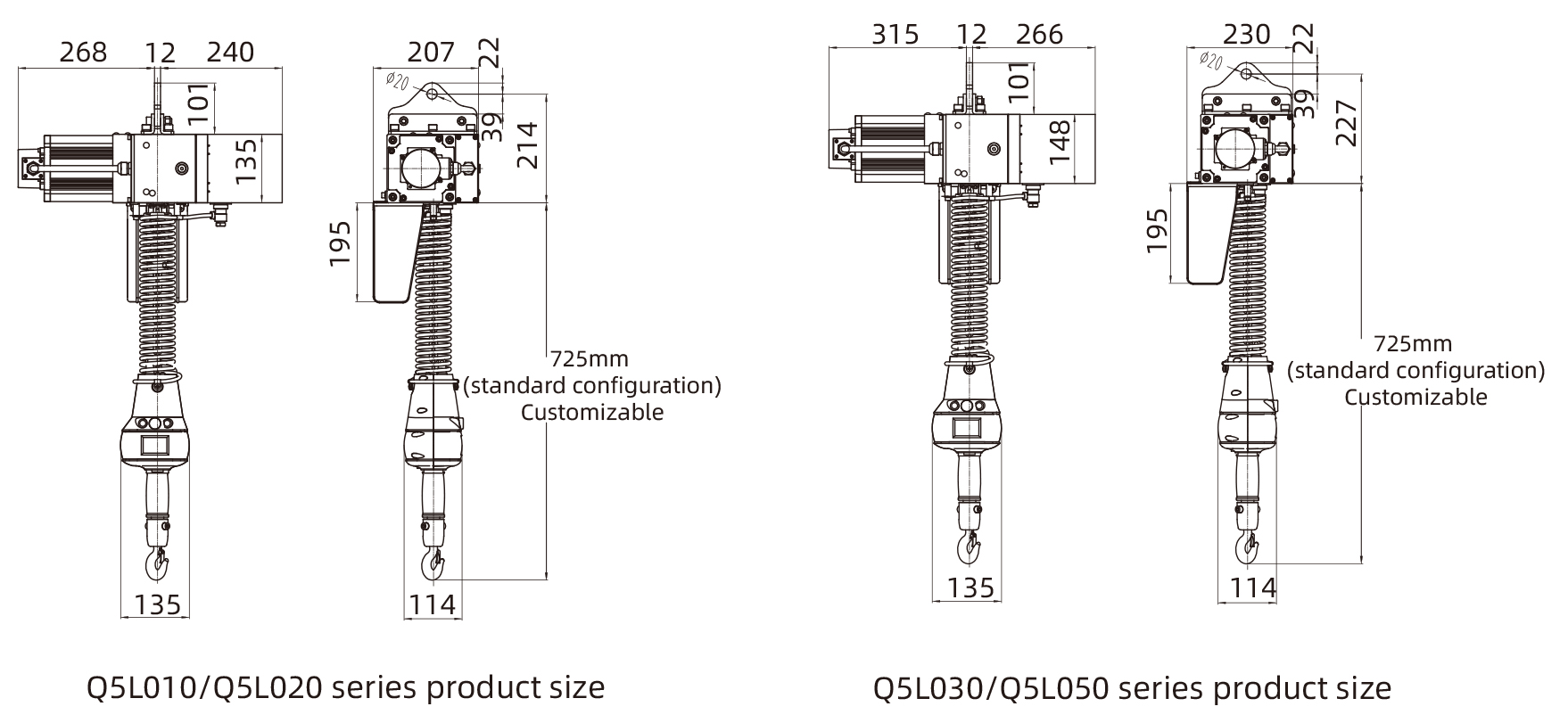

Model
Item name |
Q5L010 |
Q5L020 |
Q5L030 |
Q5L050 |
|
| Maximum load(kg) |
100 |
200 |
300 |
500 |
| Lifting speed(m/min) |
16 |
13 |
11 |
10 |
| Rated power(Kw) |
0.55 |
0.75 |
1.1 |
1.5 |
Vertical maximum stroke
(m) |
2.8(customizable) |
| Control mode |
Coaxial sliding handle |
| Deadweight (Kg) |
40 |
40 |
45 |
45 |
| Power supply |
standard 220V(optional 380V) |
Working level of the
organization |
M5 |
| Operation temperature |
-25℃~40℃ |
