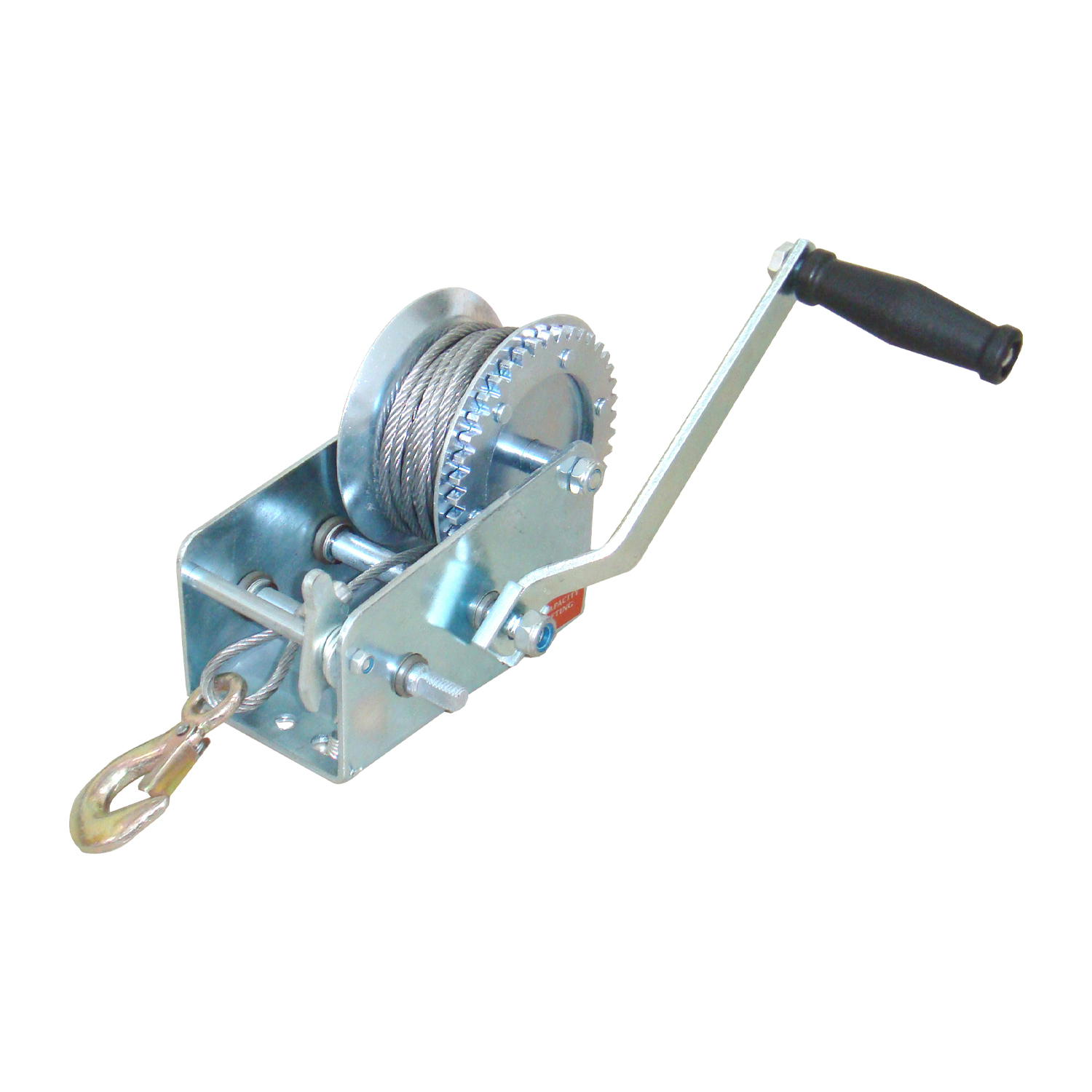

Multipurpose Hand Winch-FD

FD
Model
Hand Winch

Multipurpose. Lifting, supporting and hauling goods with hand-driver.
Safety and reliability. Easy stop in any position with self-lock.
Lubrication：Factory lubrication before packaging.
Oil-retaining bushings or bearing for smooth drive.
Durable surface finish. Powder-coated surface plus zinc-plating for longer corrosion resistance.

Contact now

Ask a question

PREV：Hand Winch-LHW

NEXT：No next products

PRODUCT DESCRIPTION

1. Hook

Made of steel and reinforced. Ensuring safety of worker. One- -way closed design to prevent separa tion or accident.

2. Swing Handle

The spring of the small gear rotates elastically, then drives the big gear to rotate. Gradually shrinking the cable.

3. Thiek Material

Forged from steel, heat-treated body brings high hardness, durable and long service life.

4. Integral 8 lingle Gear

The hand winch is forged by high temp quenching, with high strength and strong bearing capacity and long service life.

5. ThickenedI lase

More stable and durable. Small size, handy tools. Reasonable layout, compact structure.

6.Double Gear（FDD)

Double Gear model FDD is also avalible to fit in different working environment

Model	Rated Pull (lbs)	B/S (lbs)	Gear Ratio	Pieces in Each Box	G.W./N.W. (kg)	Size of Package (mm)
FD-600	600	900	3.2:1	6	13/11	45x26x20
FD-800	800	1200	3.2:1	6	14/12	45x26x20
FD-1000	1000	1500	4.1:1	6	15/13	66x27x18
FD-1200	1200	1800	4.1:1	6	16/14	66x27x18
FD-1400	1400	2000	4:1	6	18/16	66x27x18
FD-1600	1600	2400	4:1	4	15/13	52x31x20
FD-1800	1800	2700	4:1/8:1	4	17/15	52x31x20
FD-2000	2000	3000	4:1/8:1	4	18/16	52x31x20
FD-2500	2500	3750	4:1/8:1	4	19/17	52x31x20
FDD-2000	2000	2500	4.1:1	6	26/24	50x28x22
