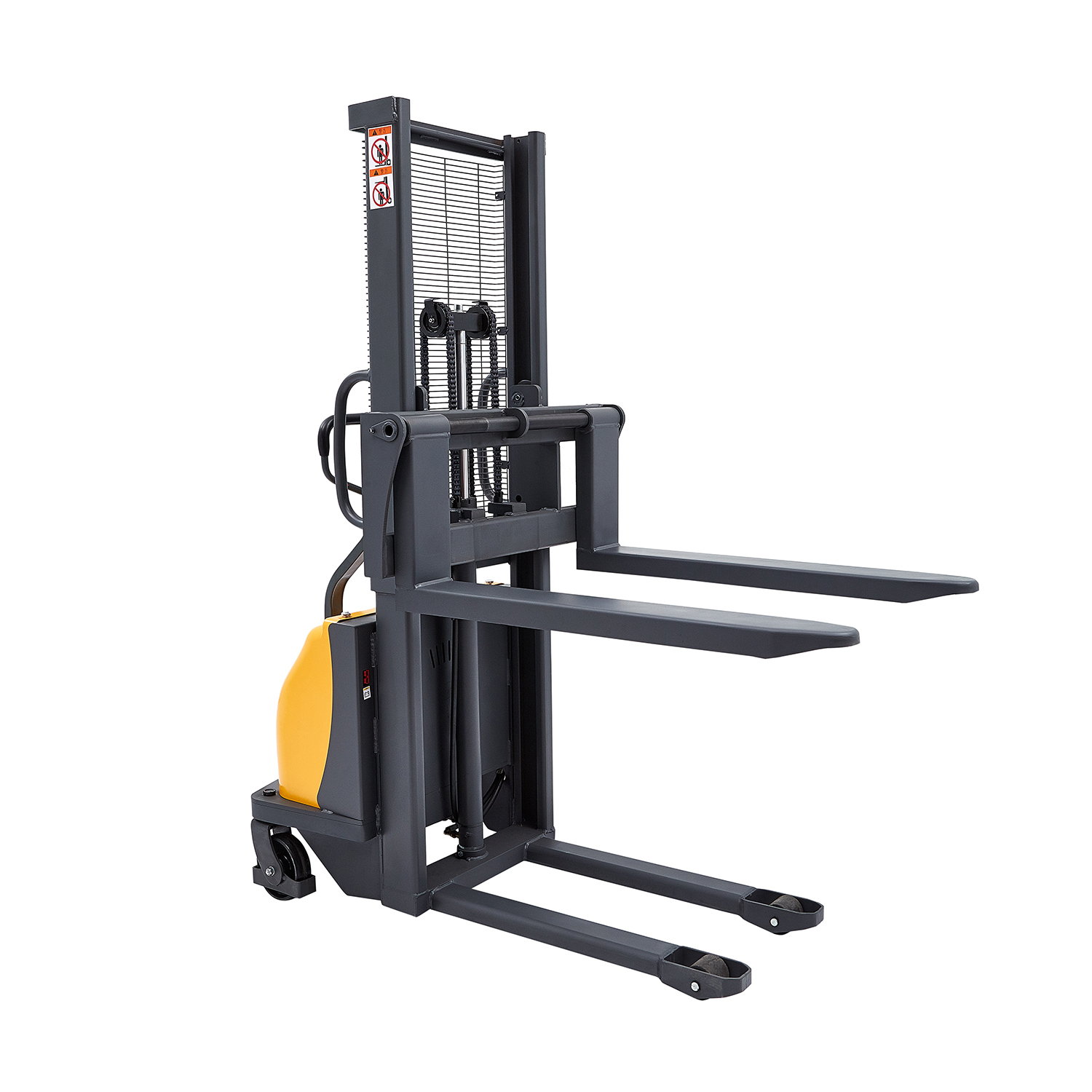

Semi Electric Stacker-CDD10B-III

Model

CDD10B-III

Semi-electric Stacker

Handle-castor chain assist steering system greatly reduces the labor intensity.
Equipped with explosion-proof valve, against of sudden drop of forks and prevent operator from harm.
Over-discharge protection device greatly prolongs the battery life time.
Overall type adjustable forks, which can be lowered to the same level of the legs.
Chain connect side wheel and handle , easy for steering.
Easy operating foot brake.

Contact now

Ask a question

PREV：Full Electric Stacker-CDD10R-E

NEXT：Semi Electric Stacker-EJ

PRODUCT DESCRIPTION

Model		CDD10B -III(Overall forks)	CDD15B -III(Overall forks)
Load capacity	Q(kg)	1000	1500
Load centre distance	c(mm)	500	500
Load distance, centre of drive axle to fork	x(mm)	802	802
Tyre size, front	mm	φ180x50	φ180x50
Tyre size, rear	mm	φ80x77	φ80x77
Wheels, number front rear(x=driven wheels)		2/2	2/2
Fork height, lowered	h13(mm)	90
Height, mast lowered	h1(mm)	2090/1840/2090/2240/2340
Max. lift height	h3(mm)	1600/2500/3000/3300/3500
Height, mast extended	h4(mm)	2090/3060/3560/3860/4060
Overall length	l1(mm)	1678	1740
Length to face of forks	l2(mm)	608	670
Overall width	b1(mm)	800	800
Fork dimensions	s/e/l(mm)	60/170/1070	60/170/1070
Width overall forks	b5(mm)	570/695	570/695
Aisle width for pallets 800x1200 lengthways	Ast(mm)	2267	2347
Turning radius	wa(mm)	1425	1505
Lift speed, laden/unladen	m/s	0.07/0.10	0.07/0.10(0.06/0.10)
Lowering speed, laden/unladen	m/s	0.15/0.12	0.12/0.15(0.15/0.12)
Service brake		mechanical	mechanical
Battery voltage, nominal capacity K5	V/Ah	12/120	24/120(12/120)
Battery weight	kg	45	45
Battery dimensions l/w/h	mm	360x170x250	360x170x250
Service weight (with battery)	kg	355/410/445/475/495	405/475/480/530/550

Model		CDD10B-III(Adjustable forks)	CDD15B-III(Adjustable forks)
Load capacity	Q(kg)	1000	1500
Load centre distance	c(mm)	500	500
Load distance, centre of drive axle to fork	x(mm)	745	745
Tyre size, front	mm	φ180x50	φ180x50
Tyre size, rear	mm	φ80x77	φ80x77
Wheels, number front rear(x=driven wheels)		2/2	2/2
Fork height, lowered	h13(mm)	90
Height, mast lowered	h1(mm)	2090/1840/2090/2240/2340
Max. lift height	h3(mm)	1600/2500/3000/3300/3500
Height, mast extended	h4(mm)	2090/3060/3560/3860/4060
Overall length	l1(mm)	1735	1835
Length to face of forks	l2(mm)	665	765
Overall width	b1(mm)	800	800
Fork dimensions	s/e/l(mm)	60/142/1070	60/142/1070
Width overall forks	b5(mm)	295-930	295-930
Aisle width for pallets 800x1200 lengthways	Ast(mm)	2267	2347
Turning radius	wa(mm)	1425	1505
Lift speed, laden/unladen	m/s	0.07/0.10	0.07/0.10(0.06/0.10)
Lowering speed, laden/unladen	m/s	0.15/0.12	0.12/0.15(0.15/0.12)
Service brake		mechanical	mechanical
Battery voltage, nominal capacity K5	V/Ah	12/120	24/120(12/120)
Battery weight	kg	45	45
Battery dimensions l/w/h	mm	360x170x250	360x170x250
Service weight (with battery)	kg	385/440/475/505/525	435/510/535/560/580
