360 Degrees Chain Hoist HSZ-360

This type can be used in 360 degrees

This type is equipped with axletree and can reduce hand pulling force. Patent model with revolutionary design
Special designed to hook can backout easily and can be installed with trolley directly
Premium grade alloy load chain and zinc plated hand chain as standard
Drop-forged and expertly heat-treated hooks for great strength and long wearing
Capacity ranges from 0.5t to 20t, heavy duty 30t,50t is available
The hooks are fitted with robust safety latches and rotate 360°
Can carry overload limiter

Contact now

Ask a question

PREV：Standard Chain Hoist HSZ

NEXT：Mini Chain Hoist HSZ-M

PRODUCT DESCRIPTION

Model			HSZ-0.25t	HSZ-0.5t	HSZ-1.0t	HSZ-1.5t	HSZ-2.0t	HSZ-3.0t	HSZ-5.0t	HSZ-10t	HSZ-15t	HSZ-20t	HSZ-30t	HSZ-50t
Capacity		tons	0.25	0.5	1	1.5	2	3	5	10	15	20	30	50
Standard lift		m	2.5	2.5	2.5	2.5	2.5	3	3	3	3	3	3	3
Running test load		KN	3.75	7.5	15	22.5	30	45	75	150	225	300	450	750
Effort required to lift rated load		N	220	250	285	380	340	370	370	380	380	390*2	390*2	390*2
Diameter of hand chain		mm	3*15	5*23.6
Strands of load chain			1	1	1	1	1	2	2	4	6	8	12	22
Diameter of load chain		mm	4*12	6*18	6*18	8*24	8*24	8*24	10*30	10*30	10*30	10*30	10*30	10*30

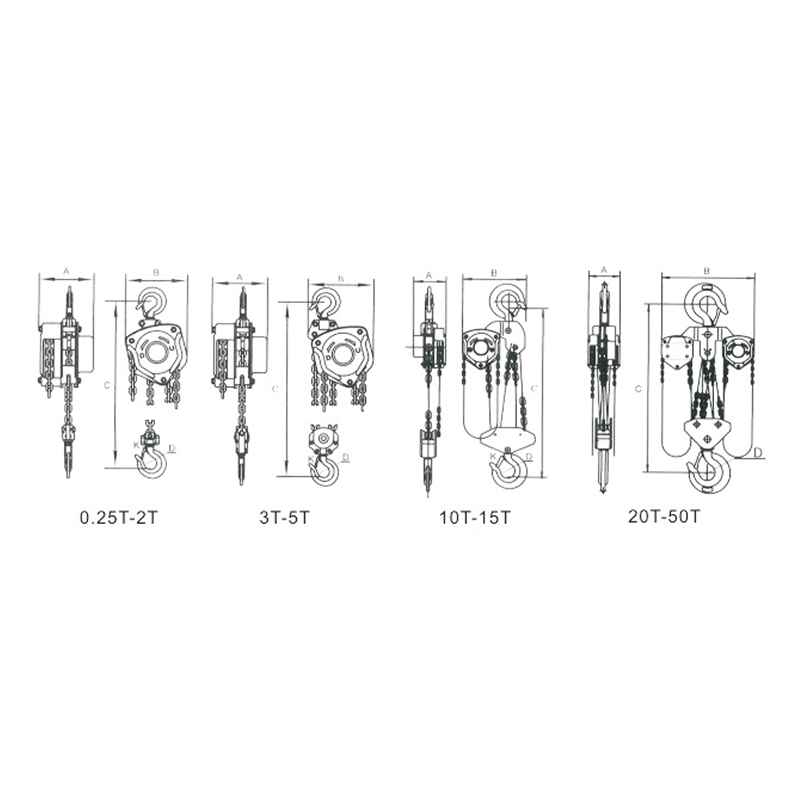

Dimensions（mm）	A		102	132	132	173	175	205	189	189	200	200	350	430
	B		106	148	148	196	210	255	280	463	718	840	700	930
	C		260	345	376	442	470	548	688	765	900	950	1020	1920
	D		21	35	35	45	50	55	65	75	95	106	110	130
	K		20	23	23	33	35	39	45	54	71	82	85	130
Net weight		kg	3.8	10	11.8	16.5	18.5	24	41.1	78	135	192	300	1120
Packing measurement		cm	201512	371718	322021	372024	372024	372524	402628	543547	884065	884065	954570	13001000800
Extra weight per metre of extra lift		kg	0.37	1.5	1.8	2.4	2.4	3.7	5.4	9.8	14.7	19.6	28.5	50.5
